[Python] Buffon's Needle Problem in Polygon version(Buffon's polygon)

Korean Title : [파이썬] 뷔퐁의 바늘 문제 - 다각형 버전

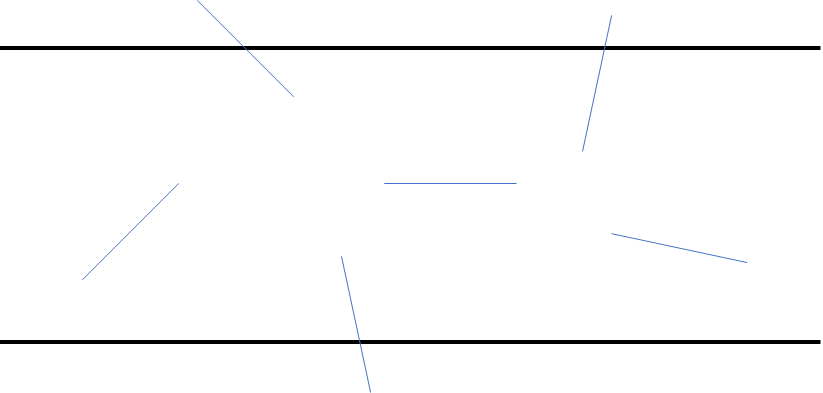

Buffon's Needle Problem is very popular math problem about 'probability' .

(https://en.wikipedia.org/wiki/Buffon%27s_needle_problem)

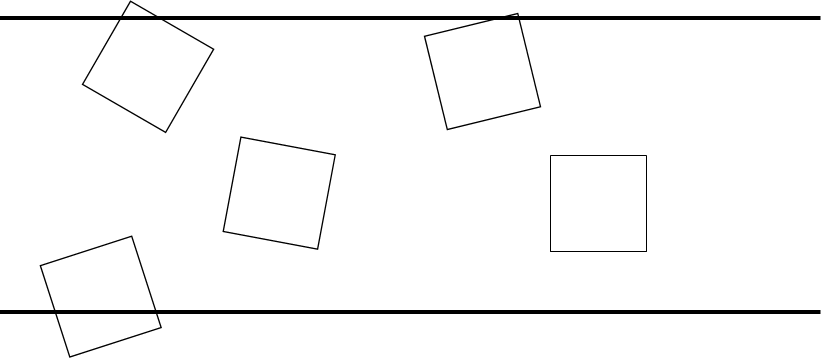

But it can be generalized for the regular polygon case. For example, it can be square instead of needles.







This python code use Monte Carlo method to obtain the probability. And also visualize the result.





""" Made By SturdyCobble
    stdcobble.tistory.com """
import math
import random
import numpy as np
from matplotlib.patches import Polygon
from matplotlib.collections import PatchCollection
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker


N = 3
poly=[]
distance=3
width=1
# Information of polygon
polygon=[(0,1),(1,1),(1,0),(0,0)]
cnt=0
patches=[]

for i in range(N):
    pol=[]
    theta=random.random()*2*math.pi
    pnt_x=random.random()*width
    pnt_y=random.random()*distance-distance/2
    for i in polygon:
    	# rotation
        point=[i[0]*math.cos(theta)-i[1]*math.sin(theta),i[0]*math.sin(theta)+i[1]*math.cos(theta)]
        point[0]=point[0]+pnt_x
        point[1]=point[1]+pnt_y
        pol.append(point)
    poly.append(pol)

def is_cross(p1,p2):
    if (p1[1]-distance/2)*(p2[1]-distance/2)<0 or (p1[1]+distance/2)*(p2[1]+distance/2)<0:
        return True

def counter():
    global cnt
    for i in poly:
        k=i+[i[0]]
        for j in range(len(polygon)):
            if is_cross(k[j],k[j+1]):
                cnt=cnt+1
                break

counter()
print(cnt)
print("Probability")
print(cnt/N)

# Visualize the result
for i in poly:
    pat=Polygon(i,True, edgecolor='g',facecolor='None',linewidth=0.3)
    patches.append(pat)

ax = plt.subplot()
l1=Polygon([(-100000,distance/2),(100000,distance/2)],False,edgecolor='b',facecolor='None')
l2=Polygon([(-100000,-distance/2),(100000,-distance/2)],False,edgecolor='b',facecolor='None')
plt.axis([-width*0.1, width*1.1, -distance*0.55, distance*0.55])
for p in patches:
    ax.add_patch(p)
ax.add_patch(l1)
ax.add_patch(l2)
loc1 = plticker.MultipleLocator(base=width)
loc2 = plticker.MultipleLocator(base=distance/2)
ax.xaxis.set_major_locator(loc1)
ax.yaxis.set_major_locator(loc2)
plt.grid(True)

plt.show()







Example :

------------setting---------------
N = 1000
poly=[]
distance=10
width=20
polygon=[(0,1),(1,1),(1,0),(0,0)] # l/d = 0.1

--------------output--------------

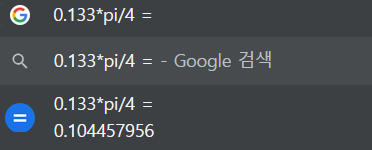

133
Probability
0.133
----------------------------------

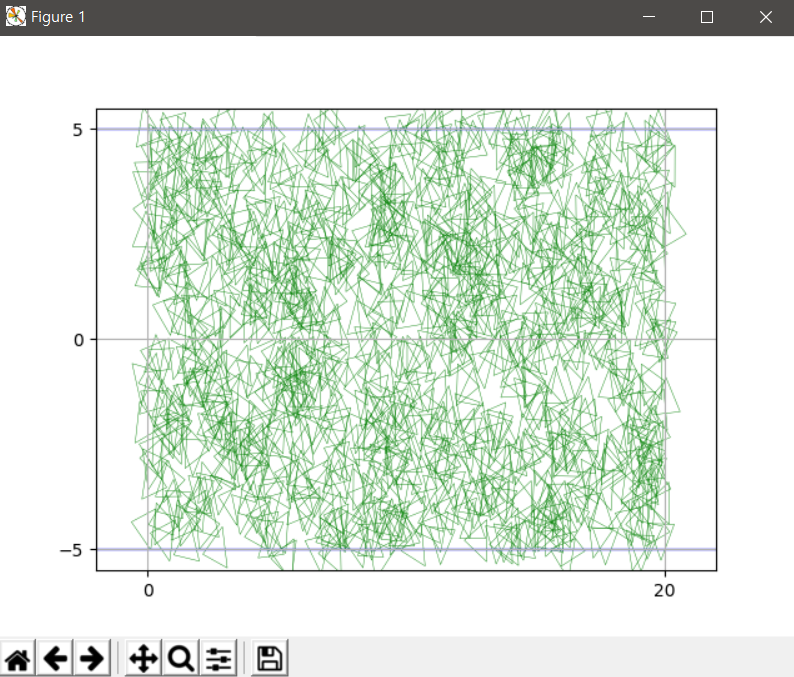

------------setting---------------
N = 1000
poly=[]
distance=10
width=20
polygon=[(-0.5,0),(0.5,0),(0,math.sqrt(3)/2)]
--------------output--------------
113
Probability
0.113
----------------------------------

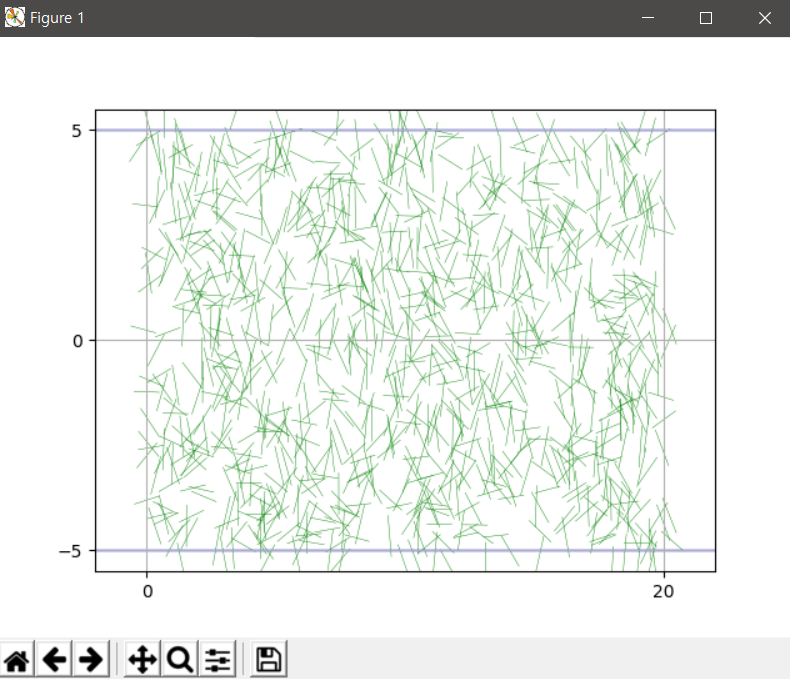

N = 1000
poly=[]
distance=10
width=20
polygon=[(-1,0),(0,0)] # Actually, NOT needle.
-----------output-------------

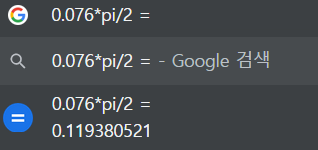

76
Probability
0.076





Reference:

https://en.wikipedia.org/wiki/Buffon%27s_needle_problem

Buffon's needle problem - Wikipedia

https://en.wikipedia.org/wiki/Monte_Carlo_method

Monte Carlo method - Wikipedia

http://gtfe.usal.es/pdfs/ensenanza/santi_int_j_math_edu_sci_irrational_06.pdf

Statistical estimation of some irrational numbers using an extension of Buffon’s needle experiment(S. VELASCO, F. L. ROMAN, A. GONZALEZ, J. A. WHITE, 2005)
